Model:MW45-88
Capacity(T/D): 20-150
Inlet Consistency: ≤4%
Inlet Pressure (kg/cm ²): 1.5-2.0
Screen Plate:Φ3/Φ4·····Φ6/Φ7 tiered difference 0.5 tiered
|
Name |

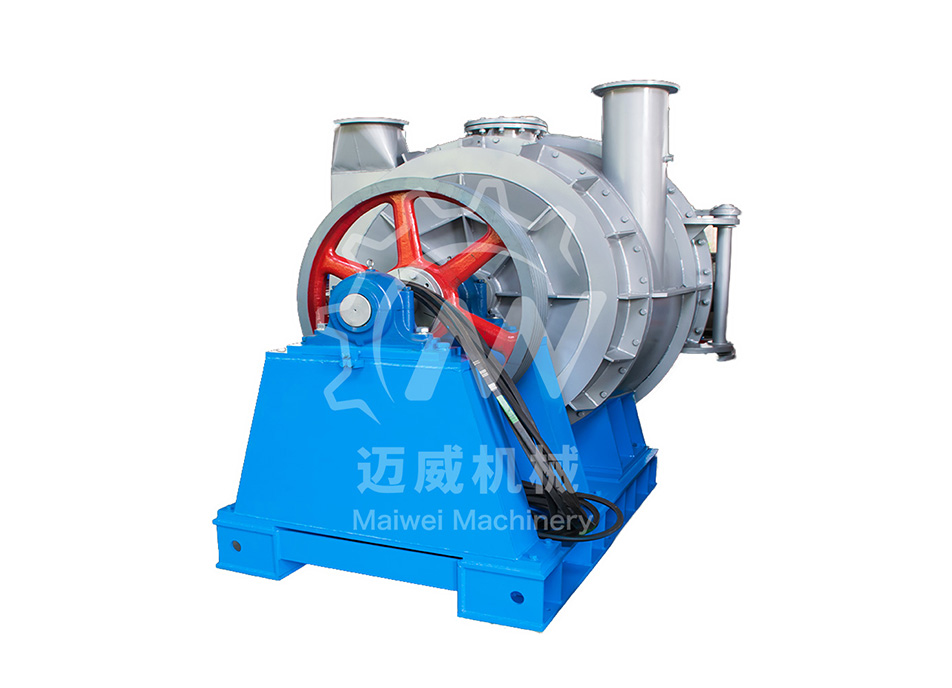

Fiber separator |
|||
|
Model |
MW-45 |
MW-55 |
MW-75 |
MW-88 |
|
Capacity(T/D) |
20-40 |
50-70 |
80-100 |
110-150 |
|
Inlet consistency |
≤4% |
|||
|
Inlet pressure (kg/cm²) |
1.5-2.0 |
|||
|
Screen plate |
Φ3/Φ4·····Φ6/Φ7 tiered difference 0.5 tiered hole series |
|||
|
Diameter of inlet pipe(mm) |
Dg150 |
Dg200 |
Dg200 |
Dg200 |
|
Diameter of good pulp pipe(mm) |
Dg150 |
Dg200 |
Dg200 |
Dg200 |
|
Pressure difference(kg/cm²) |
0.3-0.5 |
|||
|
Motor Power(KW) |
Y200L2-6/22 |
Y280S-6/45 |
Y280M-6/55 |
Y315S-6/75 |
