Model: AT400-AT1500
Flow of single Equipmen(L/min): 400-1500
Inlet Consistency(%): 0.3-1.5

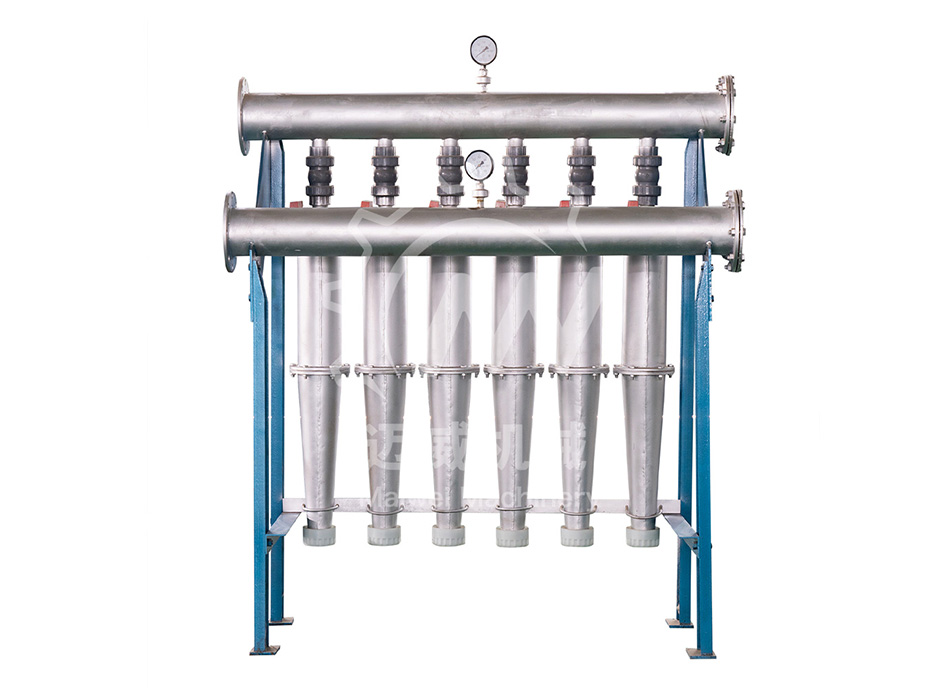

Name: Low Density Cleaner/Centricleaner
Model: AT400-AT1500
Flow of single Equipmen(L/min): 400-1500
Inlet Consistency(%): 0.3-1.5
Pressure of Inflow Pulp(Mpa): 0.2-0.4
Diameter Of Deslagging Outlet: 4-18
Name: Reject sorter
Model: ATXZS1/280-ATXZS3/480
Inlet Consistency (%): 1-3.5
Outlet consistency (%): 15-20
Capacity (t/d): 10-80
Power of motor (kw): 22-75
Rinse water usage: 60-150(l/min)
|
Name |
Low Density Cleaner/Centricleaner |
||||
|
Model |
MW-400 |
MW-600 |
MW-800 |
MW-1000 |
MW-1500 |
|
Flow of single Equipmen(L/min) |
400 |
600 |
800 |
1000 |
1500 |
|
Inlet Consistency(%) |
0.3-1 |
0.3-1.2 |
0.4-1.2 |
0.4-1.5 |
0.4-1.5 |
|
Pressure of Inflow Pulp(Mpa) |
0.2-0.4 |
0.2-0.4 |
0.3-0.4 |
0.3-0.4 |
0.3-0.4 |
|
Diameter Of Deslagging Outlet |
4--10 |
6--12 |
6--14 |
6--18 |
6--18 |
|
Product name |
Reject sorter / Slag reject separator |
||
|
Model |
MWZS1/280 |
MWZS2/380 |
MWXZS3/480 |
|
Inlet Consistency (%) |
1-3.5 |
||
|
Outlet consistency (%) |
15-20 |
||
|
Capacity (t/d) |
10--20 |
20--35 |
55-80 |
|
Power of motor (kw) |
22--37 |
37--55 |
55--75 |
|
Rinse water usage (l/min) |
60 |
100 |
150 |
