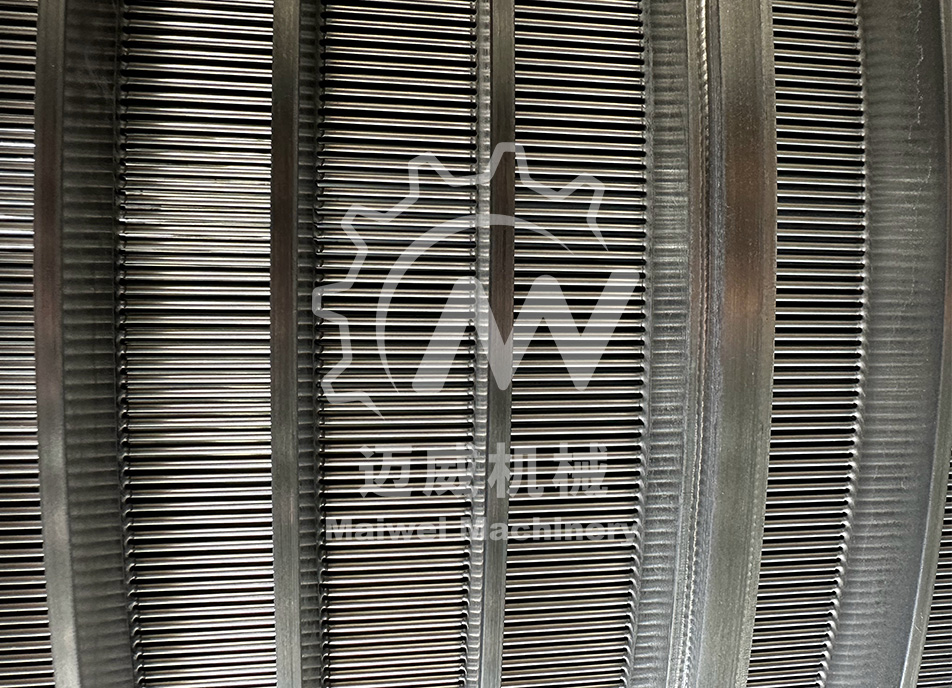

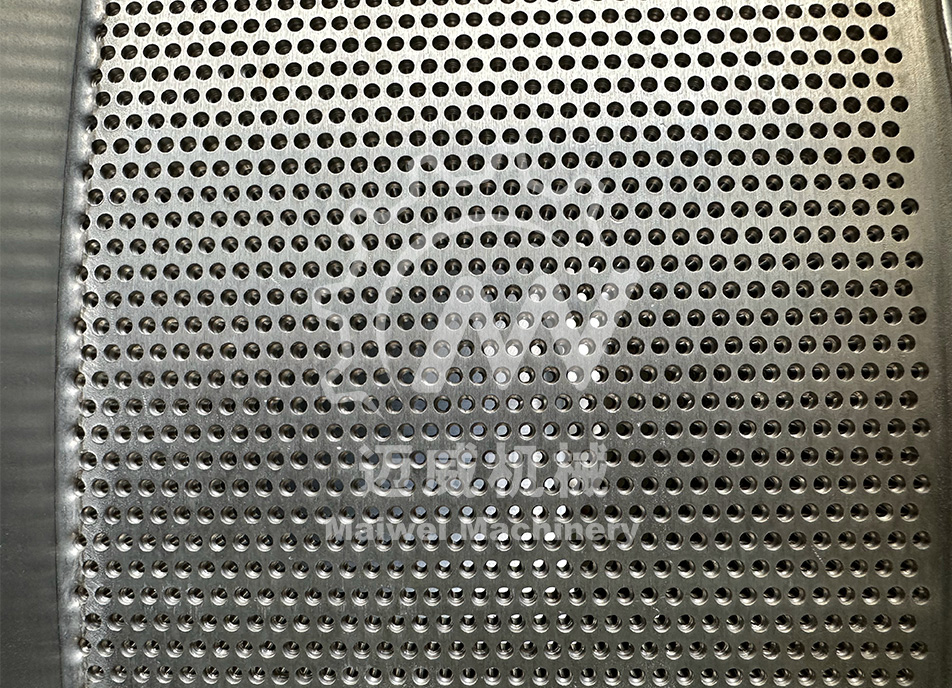

Screen basket and Screen plate
Type：Hole/Slot
Model: MWZNS0.3-MWZNS3
Screen Area(㎡): 0.3-3
Screen basket and Screen plate
Type：Hole/Slot
Model: MWZNS0.3-MWZNS3
Screen Area(㎡): 0.3-3
Sieve hole size (mm): Φ1.6-Φ3.5
Seam Size (mm): 0.1-0.55
Screen Hole (T/D): 50-700
Screen Slot (T/D): 30-450
|
Product name |
Screen basket |
|||
|
Model NO. |
ATZNS0.3 |
ATZNS0.9 |
ATZNS1.5 |
ATZNS3 |
|
Screen Area(㎡) |
0.3 |
0.9 |
1.5 |
3 |
|
Sieve hole size (mm) |
Φ1.6-Φ3.5 |
Φ1.6-Φ3.5 |
Φ1.6-Φ3.5 |
Φ1.6-Φ3.5 |
|
Seam Size (mm) |
0.1-0.55 |
|||
|
Screen Hole (T/D) |
50-80 |
135-250 |
200-380 |
400-700 |
|
Screen Slot (T/D) |
30-50 |
90-150 |
140-230 |
300-450 |
|
Inlet pulp consistency (%) |
1--4 |
|||
|
Motor Power (Kw) |
22-55 |
37-90 |
55-132 |
90-220 |
